Flame Retardant 10mm Wood Autoclave Chamber 9.0m3

Luy Machinery Equipment CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

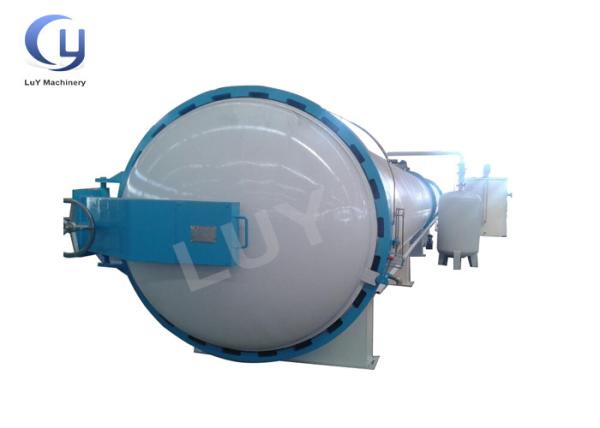

Flame Retardant 10mm Wood Autoclave Chamber 9.0m3

  • 1
  • 2
  • 3

Brand Name : LUY

Model Number : DN1000 6000MM

Certification : CE CU-TR ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 set per year

Delivery Time : Shipped in 35 days after received payment

Packaging Details : Nude packing, can be shipped by containers or bulk cargo

Product : Industrial Autoclave Chamber high pressure wood treatment equipment for wood

Thickness : 10mm

After sales : Engineer is avaible for oversea installation and vedio installation

Power : 380v 415V

Function : wood preservative

Ways : manual or automatically

Safety : Maunal system and automatical system

Color : Green ,yellow

Contact Now

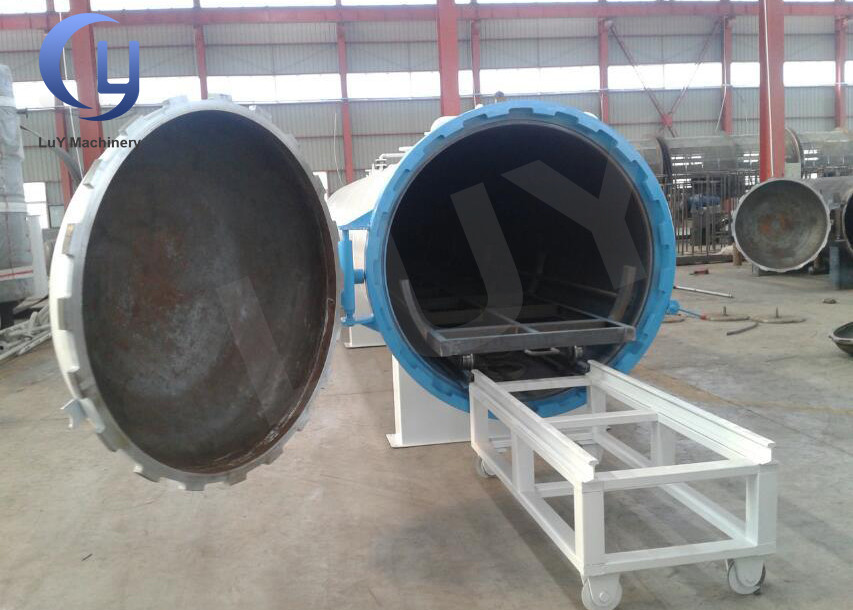

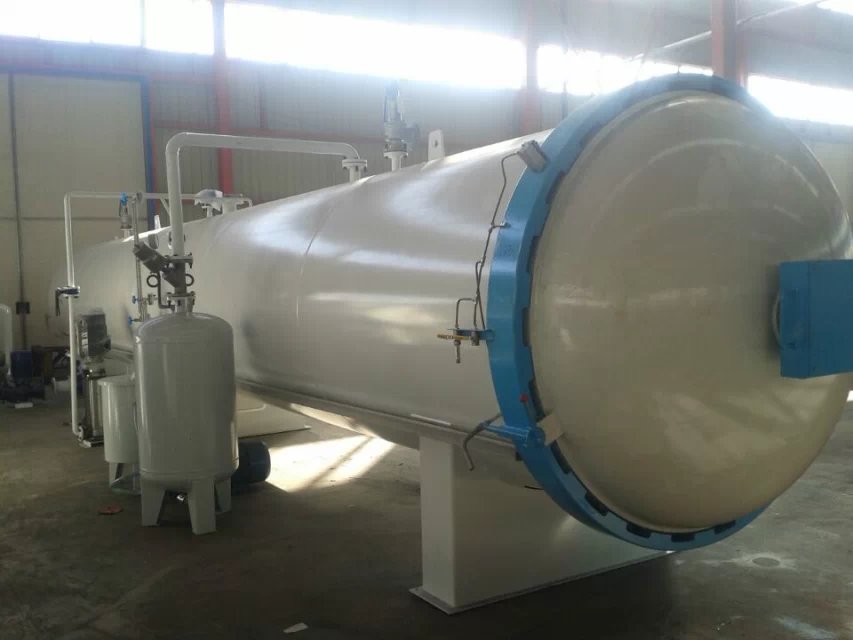

Industrial Autoclave Chamber high pressure wood treatment equipment for wood



Ⅰ Product description

Industrial Autoclave Chamber high pressure wood treatment equipment for wood

is the key equipment of wood anticorrosion and coloring. Through the pharmaceutical infusion, pressure infiltration, vacuum drying and other processes, the wood in the storage tank can not only effectively prevent the mildew corrosion caused by wood rot bacteria, but also effectively prevent the damage of termites, wood borers and other insects to the wood. At the same time, adding different agentia can have the effect of flame retardant and coloring, greatly improving the service life and use effect of wood. Anticorrosive and flame retardant wood is widely used in indoor furniture, wood, antique garden construction, railways, mines, dock protection wood, pile of timber construction and other occasions.
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3


Ⅱ Main Model

Model Total capacity (m3) Treat capacity(m3)
DN 1200*6000mm 6.7 4.5
DN 1200*8000mm 9.0 6.0
DN 1500*4000mm 7.0 4.71
DN 1500*6000mm 10.5 7.0
DN 1500*8000mm 14 9.4
DN 1800*4000mm 10.1 6.78
DN 1800*6000mm 15.2 10.17
DN 1800*8000mm 20.3 13.5
DN 2000*6000mm 18.8 12.5
DN 2000*8000mm 25 16.7
DN 2000*10000mm 31.4 20
DN 2000*18000mm 56 37


Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3

Ⅲ Technical parameters

Name
Industrial Autoclave Chamber high pressure wood treatment equipment for wood
Design Pressure
1.58MPa
Application
Wood Treatment
Dimension(L*W*H)
Customized
Control System
Automatic Control
Function
wood impregnation wood dyeing wood antispect
Capacity
Customized
Desigh temperature
100℃
Raw material
carbon steel
Type
Horizontal
Product Application
Industrial Autoclave Chamber high pressure wood treatment equipment for wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Flame Retardant 10mm Wood Autoclave Chamber 9.0m3
Model No.
Control Methods
Inner Diameter
Length
Capacity
Heating Methods
Working Pressure
Vacuum Degree
Temperature
(mm)
(mm)
(m³)
Steam&4Air&Oil
(Mpa)
(Mpa)
(°C)
DN1500*10000
automatic
1500
10000
18.6m³
1.58MPa
-0.098MPa
100°C
DN2000*9000
automatic
2000
9000
30.5m³
1.58MPa
-0.098MPa
100°C
DN1800*18000
automatic
1800
18000
47.4m³
1.58MPa
-0.098MPa
100°C


Industrial Autoclave Chamber high pressure wood treatment equipment for wood

Technology Process
Wood cooking equipment
The reason why the wood should be cooked is mainly because the color of the wood can be changed after cooking; the color difference between the core and sapwood of the wood can be reduced; the luster of the wood can be maintained; the gradient difference of the initial moisture content of the wood can be alleviated; the probability of the occurrence of wood drying defects can be reduced; at the same time, it is not easy to crack after cooking, which also helps to prevent corrosion and moth.
The purpose of cooking is to soften the wood, increase the plasticity and moisture content of the wood, reduce the cutting resistance during planing, and remove the oil, tannin and other extracts from a part of the wood.
1. Change the color of wood (purely physical method).
2. The color difference of wood core and sapwood was reduced.
3. Keep the natural luster of wood.
4. It can alleviate the gradient difference of initial moisture content of wood.
5. Reduce the probability of wood drying defects.
6. Shorten wood drying cycle
